Car Batteries-All You Need To Know.

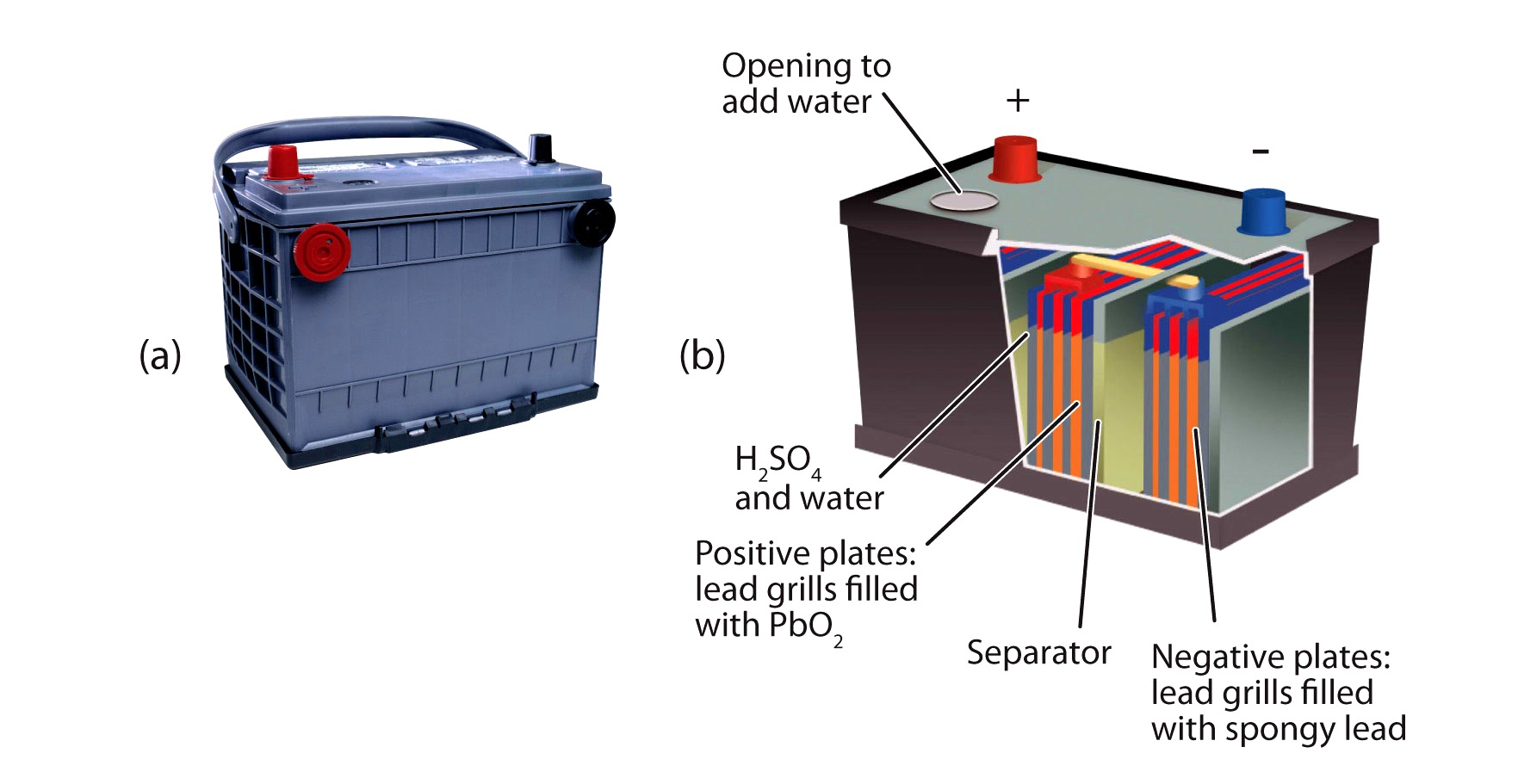

Lead acid battery
Lead Acid Maintenance Free



Introduction

Everything has a beginning, so when you use your Car, you get in and start up and the engine comes to lifeHave you ever given a thought as to how this happens? At the core of this event is a component called the Battery, I will explain how it works.

Having an understanding of the Battery’s importance is key to “Happy Motoring”. Today’s modern vehicles use mostly lead acid batteries.

an early example of a lead acid battery
Used in a Detroit Electric Car in 1914

Learn More



Great deals on Lead Acid Batteries

History of the Car Battery

An Early Electric Car
An Early Electric Car



Early Car’s electrical systems were limited and did not have batteries, they were

  • started with a crank.
  • the lights were gas powered.
  • the horn was a bell.
  • indicators were by hand.

Significant events pertaining to batteries and charging systems were:-

  • 1859 – The lead-acid battery was invented by French physicist Gaston Planté and is the oldest type of rechargeable battery.
  • 1918 – The Hudson Motor Car Company was the first to use a standardized battery.
  • 1920 – Batteries became widely used when the starter motor was invented.
  • 1950 – The first starting and charging systems were of 6-volt design and had 6 V batteries until the mid-1950s.
  • 1972 – The sealed battery invented (no more topping up with distilled water required).
  • 1990 – A 42V electrical system standard was proposed.

It was intended to allow more powerful electrically driven accessories, and lighter automobile wiring harnesses.

The availability of higher-efficiency motors, new wiring techniques, and digital controls, and a focus on hybrid vehicle systems that use high-voltage starter/generators has largely eliminated the push for switching the main automotive voltages.

6volt systems were positive ground systems; the vehicle’s chassis were directly connected to the positive battery terminal.

Today’s modern vehicles have a negative ground system. The negative battery terminal is connected to the vehicle’s chassis or body.

The changeover from 6 to 12volts happened when bigger engines with higher compression ratios, like our modern cars today, required more electrical power to start.

Get your Car Battery Here

How it Works

Each cell of a lead-acid battery consists of alternate plates of

  • lead (cathode) and
  • lead coated with lead dioxide (anode)
  • Immersed in an electrolyte of a sulphuric acid solution.

This causes a chemical reaction that releases electrons, allowing them to flow through conductors to produce electricity.

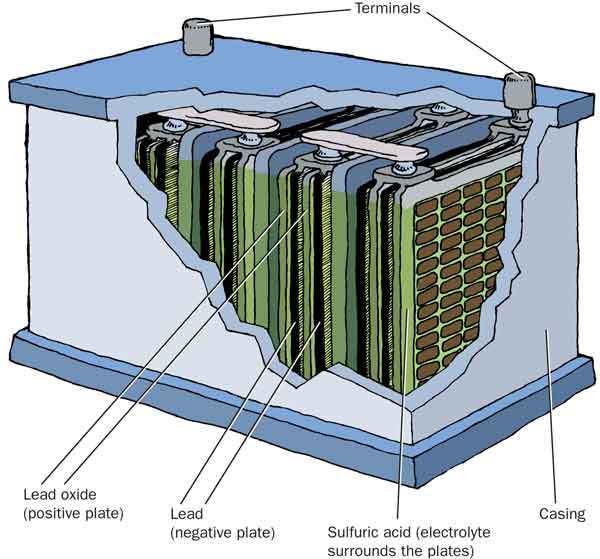

A cut out view of a lead acid battery's components
A cut out view of a lead acid battery’s components



Batteries are made up of six galvanic cells in a series circuit. Each cell provides 2.1 volts for a total of 12.6 volts at full charge.

A car battery is made of a thick plastic case, lead-based positive and negative internal plates, plate separators, lead terminals and electrolytes

Discharging –

As the battery discharges, the acid of the electrolyte reacts with the materials of the plates, changing lead dioxide to lead sulfate.

Recharging –

When the battery is recharged, the chemical reaction is reversed: the lead sulfate reforms into lead dioxide. With the plates restored to their original condition, the process may be repeated.

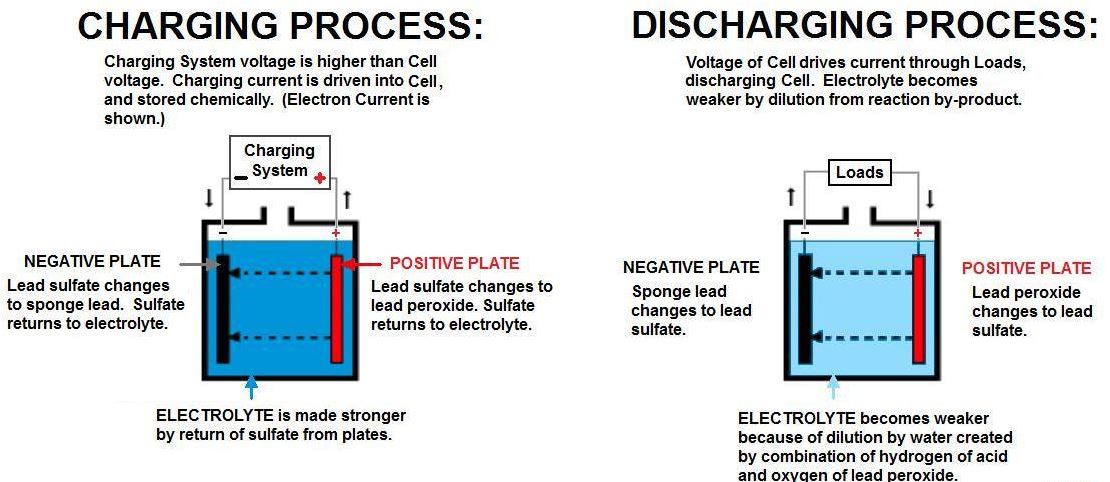

A Battery's Charging and Discharging Process
A Battery’s Charging and Discharging Process

How it is used in our Cars





How it is used in cars
How it is used in cars

The Battery in our Car is the source of supplying Electrical Energy to our vehicles and its main purpose is to start the engine.

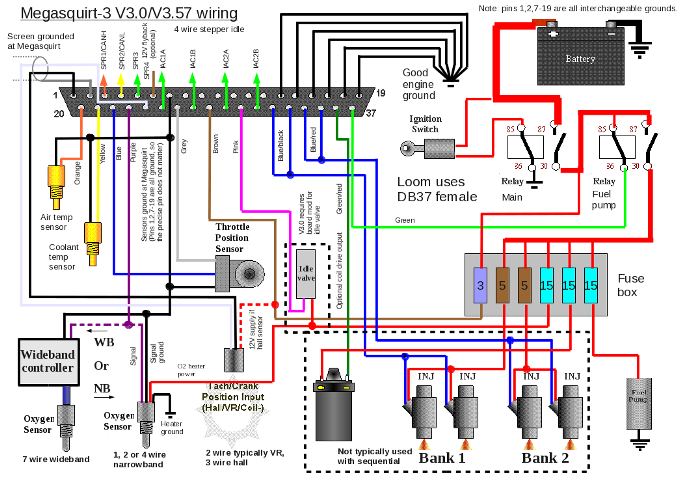

Connection diagram of electric components
Connection diagram of electric components

Once the vehicle is started, the alternator supplies our vehicles with electricity,

  • to fire the spark plugs
  • operate the fuel injectors
  • supply power to our lights, horn, and wipers etc.

Starting discharges only 3-5 % of the battery’s capacity.



Batteries are designed to release a high burst of current and then be re-charged quickly.



They are not designed for deep discharge, and fully discharging the battery will reduce the battery’s longevity.



Modern Batteries are a lead-acid type and provide 12.6 volts of direct current, nominally 12 volts; the battery is actually six cells connected in series.



The Battery also supplies the power needed when the electrical requirements of the vehicle exceed the supply from the charging system (Alternator and Regulator).



It stabilizers and evens out potentially damaging spikes in voltage while the engine is running



90% of power is provided by the Alternator, which includes a Voltage Regulator to keep the output between 13 and 14.5 Volts.



A car’s battery is constantly charged by the alternator which is driven by a fan belt connection to the engine as long as the engine is running.



A Car's Electrical Components
A Car’s Electrical Components

Good deals on Lead Acid Batteries

Battery Design

Low-Maintenance or Maintenance-Free: –

In the past, batteries required maintenance in the form of electrolyte refills. Batteries today retain their fluid for the life of the battery. A great disadvantage of these batteries is that they are very intolerant of a deep discharge.



A Battery's Components
A Battery’s Components

When a maintenance free car battery is completely drained by leaving the lights on, the lead plated electrodes are coated with sulfate deposits and can reduce the battery’s lifespan by more than a 1/3.

VRLA

Also known as Absorbed Glass Mat (AGM) batteries are more tolerant of deep discharge, but are more expensive.

Little Interesting Facts – Some vehicles use other starter batteries. the 2010 Porsche 911 GT3 RS has a lithium-ion battery as an option to save weight. Heavy vehicles may have two batteries in series for a 24 volts system or may have series-parallel groups of batteries supplying 24volts.

Terminology related to Car Batteries

  • Physical Format – batteries are grouped by physical size, type and placement of the terminals, and mounting style.
  • (Ah) Ampere-hours – Is a unit related to the energy storage capacity of the battery. This rating is required by law in Europe.
  • (CA) Cranking amperes – The amount of current a battery can provide at 32 °F (0 °C).
  • (CCA) Cold cranking amperes – Is the amount of current a battery can provide at 0 °F (−18 °C). Modern cars with computer controlled fuel-injected engines take no more than a few seconds to start and CCA figures are less important than they were in the old days of carburetors.
  • (HCA) Hot cranking amperes – Is the amount of current a battery can provide at 80 °F (26.7 °C). The rating is defined as the current a lead-acid battery at that temperature can deliver for 30 seconds and maintain at least 1.2 volts per cell (7.2 volts for a 12-volt battery).
  • (RCM) Reserve capacity minutes – is a battery’s ability to sustain a minimum stated electrical load; it is defined as the time (in minutes) that a lead-acid battery at 80 °F (27 °C) will continuously deliver 25 amperes before its voltage drops below 10.5 volts.
  • (BCI)Battery Council International group size – Specifies a battery’s physical dimensions, such as length, width, and height.
Recycling is always a good idea
Recycling is always a good idea

Recycling

A Battery's Recyclable Components
A Battery’s Recyclable Components



Lead–acid battery recycling is one of the most successful recycling programs in the world. In the United States, 99% of all battery lead was recycled between 2009 and 2016.

An effective pollution control system is a necessity to prevent lead emission. Continuous improvement in battery recycling plants and furnace designs is required to keep pace with emission standards for lead smelters. Recycling of automotive batteries reduces the need for resources required for manufacture of new batteries,

Battery Failure

Approximately 50% of premature car battery failures are caused by the loss of water for normal recharging, due to the lack of maintenance, evaporation from high underhood heat, or overcharging…

Deep Cycle Batteries

Specially designed deep-cycle cells are much less susceptible to degradation due to cycling and are required for applications where the batteries are regularly discharged, such as electric vehicles (forklift, golf cart, electric cars and other) and uninterruptible power supplies.

These batteries have thicker plates that can deliver less peak current but can withstand frequent discharging. Some batteries are designed as a compromise between starter (high-current) and deep cycle batteries.

They are able to be discharged to a greater degree than automotive batteries but less so than deep cycle batteries. They may be referred to as “marine/motorhome” batteries, or “leisure batteries”.



Explosion Risk

An Exploded Battery
An Exploded Battery

Car battery after an explosion. Excessive charging causes electrolysis, emitting hydrogen and oxygen. This process is known as “gassing”. Wet cells have open vents to release any gas produced, and VRLA batteries rely on valves fitted to each cell.

Accumulated hydrogen and oxygen sometimes ignite in an internal explosion. The force of the explosion can cause the battery’s casing to burst, or cause its top to fly off, spraying acid and casing fragments.


How to jump start a vehicle with a flat battery

A flat car battery  can be jump started by a charged car battery, with booster cables, by:-

Connecting a Red clamp of the jumper cable to the positive terminal of the vehicle’s Live Battery terminal (RED) and the other end of the Red jumper cable to the positive terminal of the vehicle’s Dead Battery.



Jump Start Connections
Jump Start Connections



Then connect the Black jumper cable to the negative terminal of the Live battery and the other end of the Black jumper cable to the body (piece of metal inside the Dead Battery vehicle’s engine).



Allow the Live Battery vehicle to idle at a higher speed than normal for about a minute, then start the Dead Battery vehicle, when running, carefully disconnect the booster cables.



(never connect Black to Red) or ever allow Black and Red jumper cable clamps to touch each other while connected to a Live Battery, it will arc (spark) violently.




Car Jumper Packs at Reasonable Prices



Corroded Battery Terminals
Corroded Battery Terminals

A word of caution – The acid in lead-acid batteries is highly corrosive, so caution should be practiced when handling and working with an Automotive battery.

Ammonia can neutralize spilled battery acid. Surplus ammonia and water evaporate, leaving an ammonium sulfate residue. Sodium bicarbonate (baking soda) is also commonly used for this purpose.



Exit

Signs that you may need a new Car Battery
  • Sluggish starting, typically when cold
  • Battery warning light flashes or stays on (could be a faulty Alternator and/or regulator too)
  • Driving lights seems dimmer than usual
  • Excessive moisture on the casing of your battery
  • Bulging battery casing, due to blocked vents or overcharging
  • Excessive corrosion on the battery terminals
  • Low battery water levels on light maintenance batteries

When replacing your car’s battery a few factors has to be taken into consideration.

Below is a rough guide, What you are primarily using your car for?

  • Ordinary Family Vehicle – Averaging 15000 Kms per year – Light duty 45 – 55 Ah.
  • Daily Commuting – Driving from home to work – As above.
  • Pooling Car – Many start stops per day – Medium duty 55Ah – 65Ah
  • Work Car – Mostly on the road –  Appointment to appointment driving – As above
  • Mom’s Taxi – Many start-ups per day – as above
  • Recovery Vehicle – Heavy duty deep cycle batteries are needed here – 70Ah – 110Ah
  • Emergency Services Vehicle – As above



Your car manufacturer’s handbook is a good source of information pertaining to your car’s battery specification, failing that, consult your Auto Mechanic or Battery Centers, which are more than equipped to guide you in choosing a replacement unit.



I am confident that the information contained herein served to grant you a little more insight into your car’s battery.



Get Great Deals on Batteries Here



What are your thoughts, how has this article helped you?


Can I help you with anything?

Ask a question or leave a comment I will reply asap

Drop in on My profile page


Until Next Time “Safe Motoring” – Gary
